Guide on the operation of the touch button of Prism Solar S

Tabella dei contenuti

As an alternative to remote use, Prism Solar S offers the option of local use via touch button with which it is equipped, an added convenience in the user experience for the user.

Through the touch button, the user can manage:

  1. Start/Stop charging
  2. Charging mode

Start/Stop charging

Charging start & stop is manageable via the Prism Solar S’s touch button.

When charging, it will be sufficient:

  • Press 3 times to pause charging.
  • Press again 3 times to restart charging.
Touch change mode Prism Solar S graphics connected

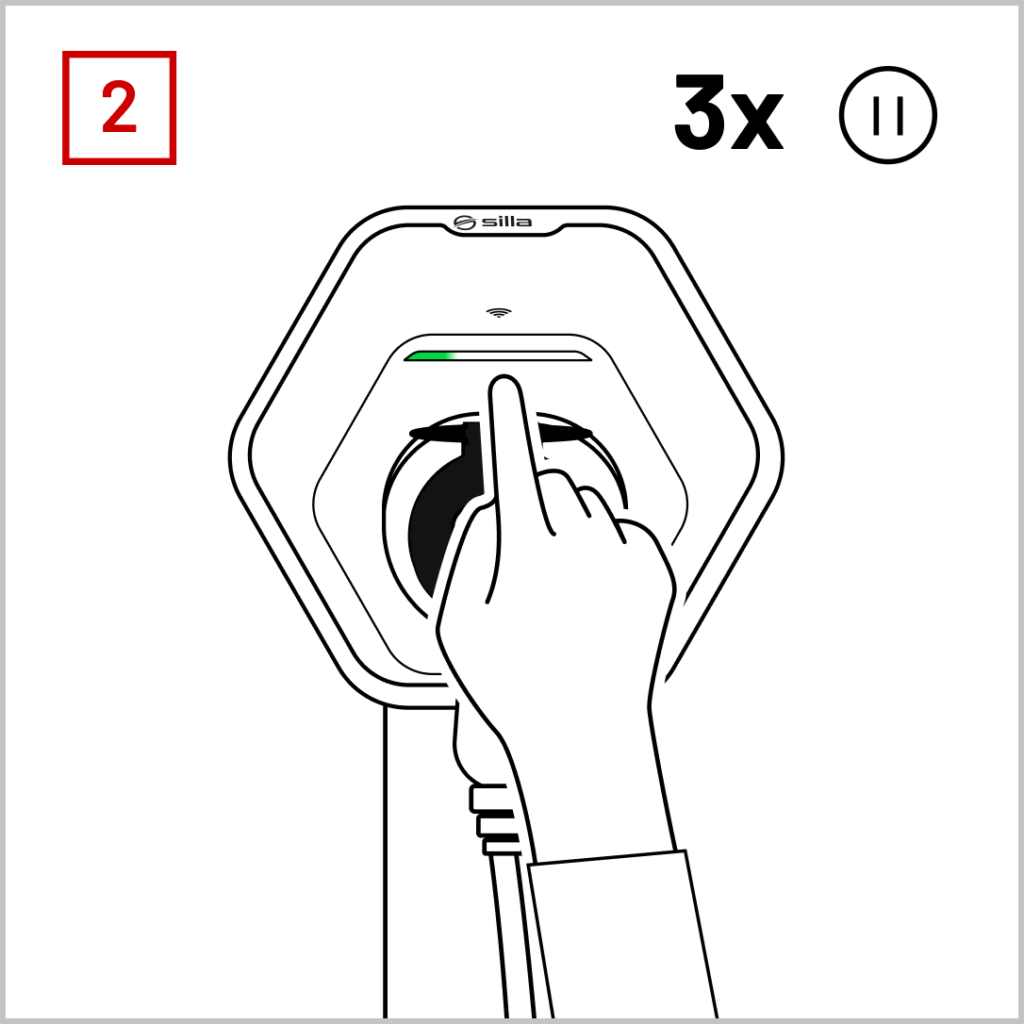

Touch change mode Prism Solar S graphics 2

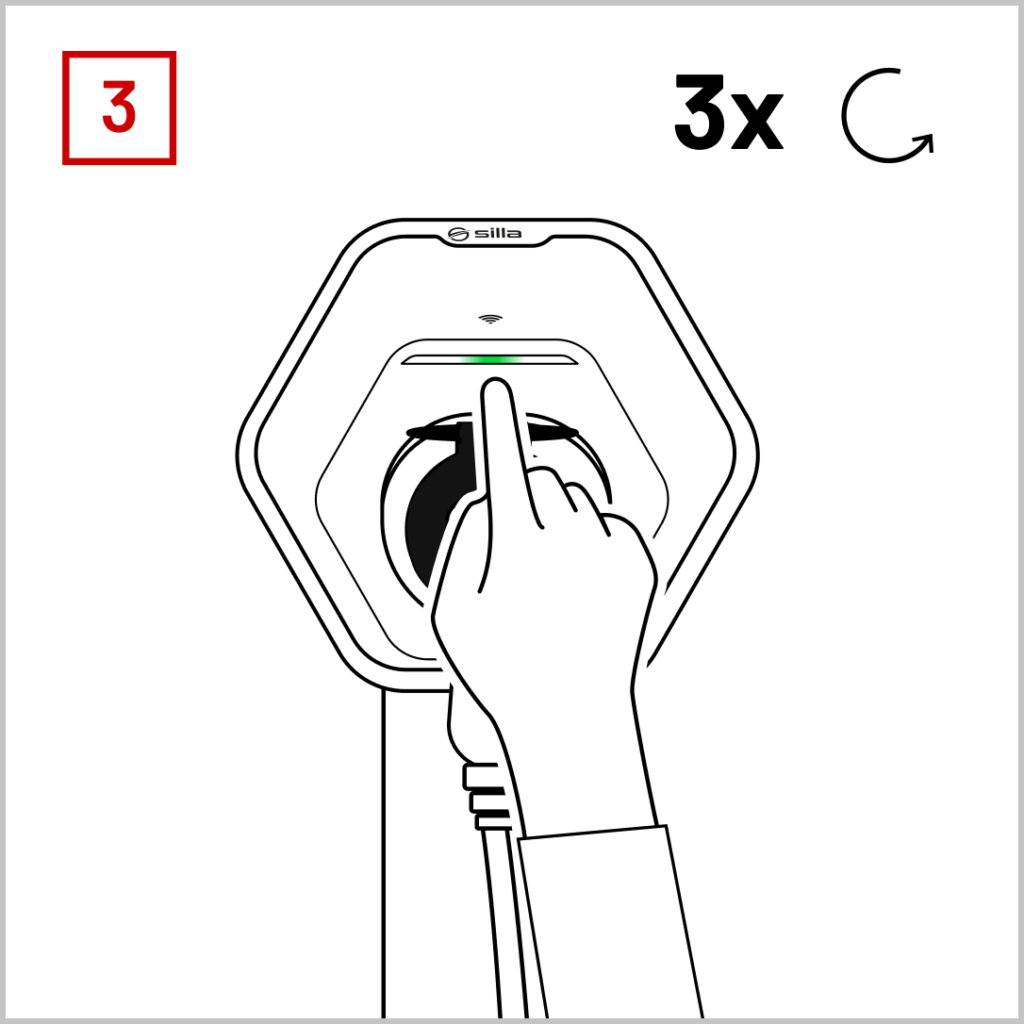

Touch change mode Prism Solar S graphics 3

Charging mode

Using the touch button we can move between the various charging modes Normal, Solar and Pause.

Simply press the button 2 times in succession to switch sequentially between the following modes:
  • Normal → Solar ☀️
  • Solar → Normal ▶️
  • Pause → Normal ⏸

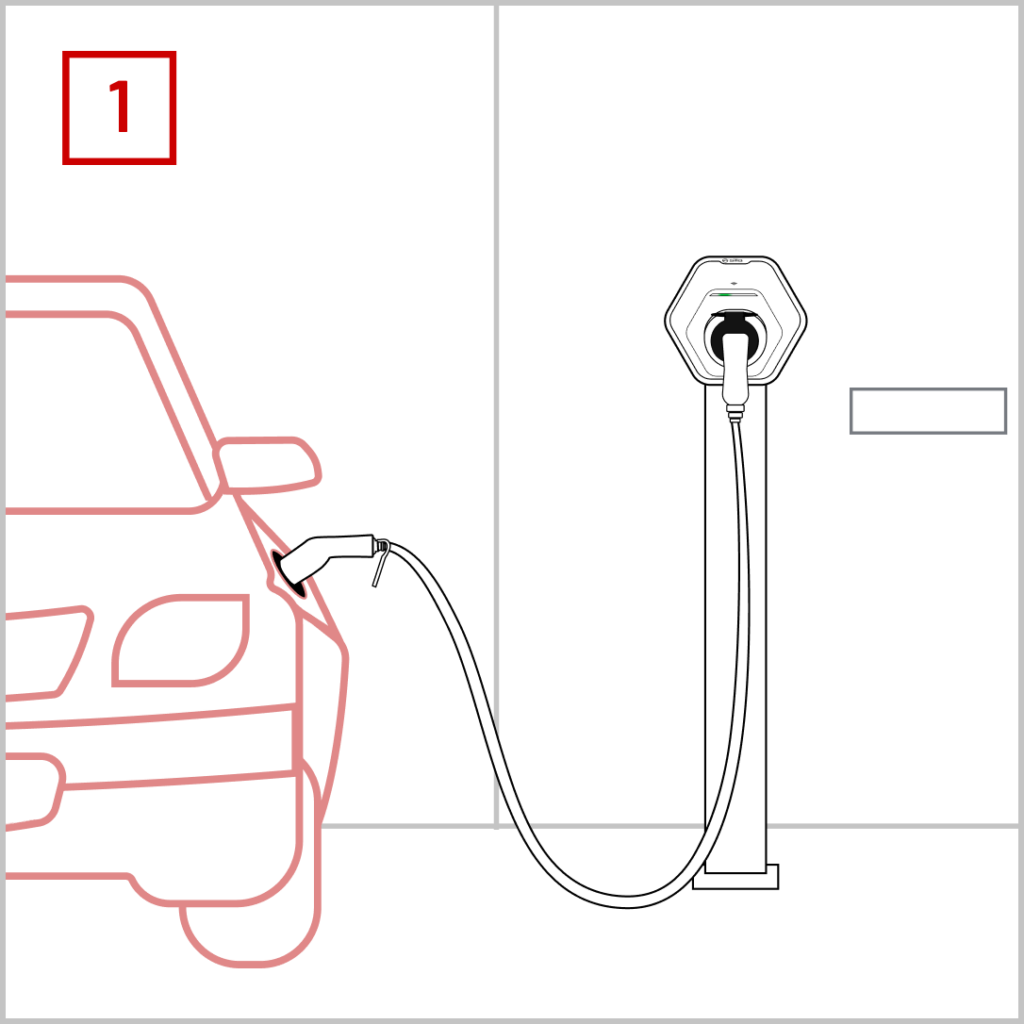

RFID Prism Solar S graphics connected

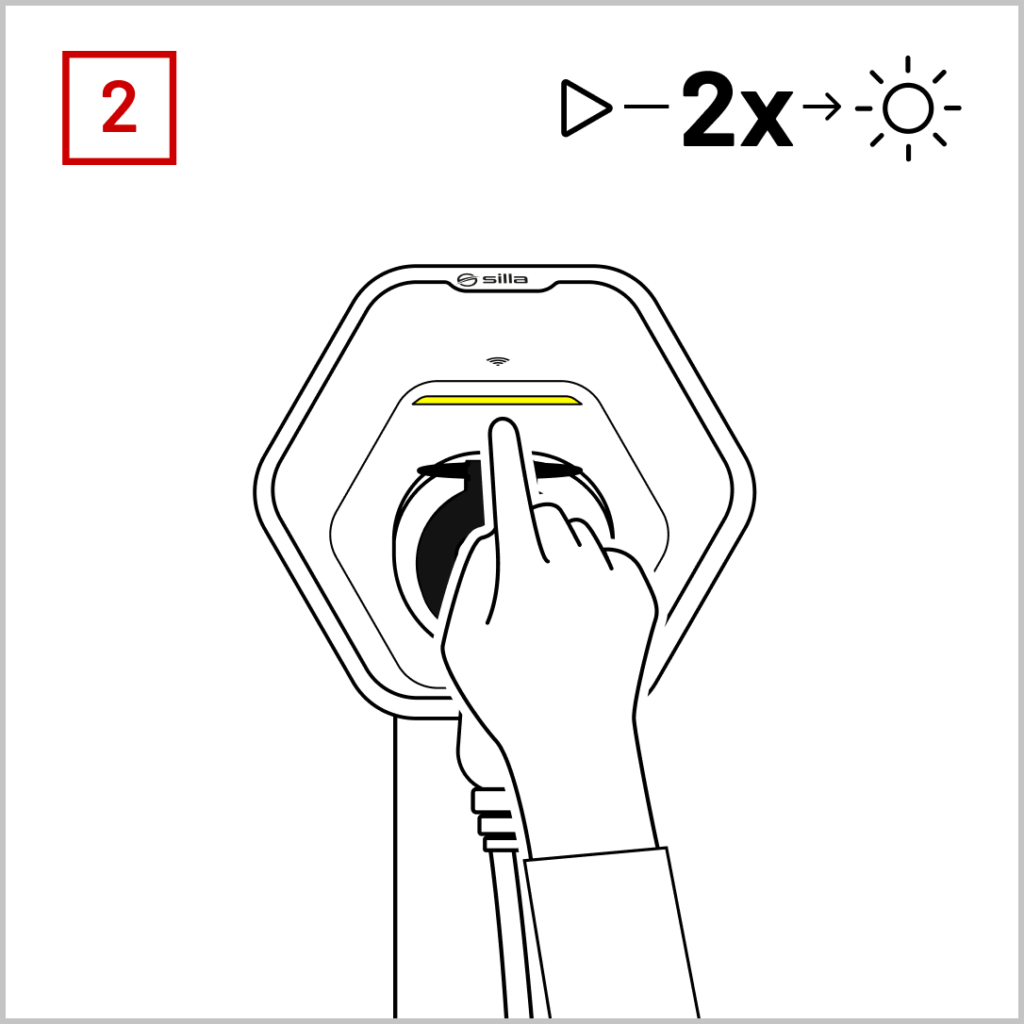

Touch change mode Prism Solar S graphics 2

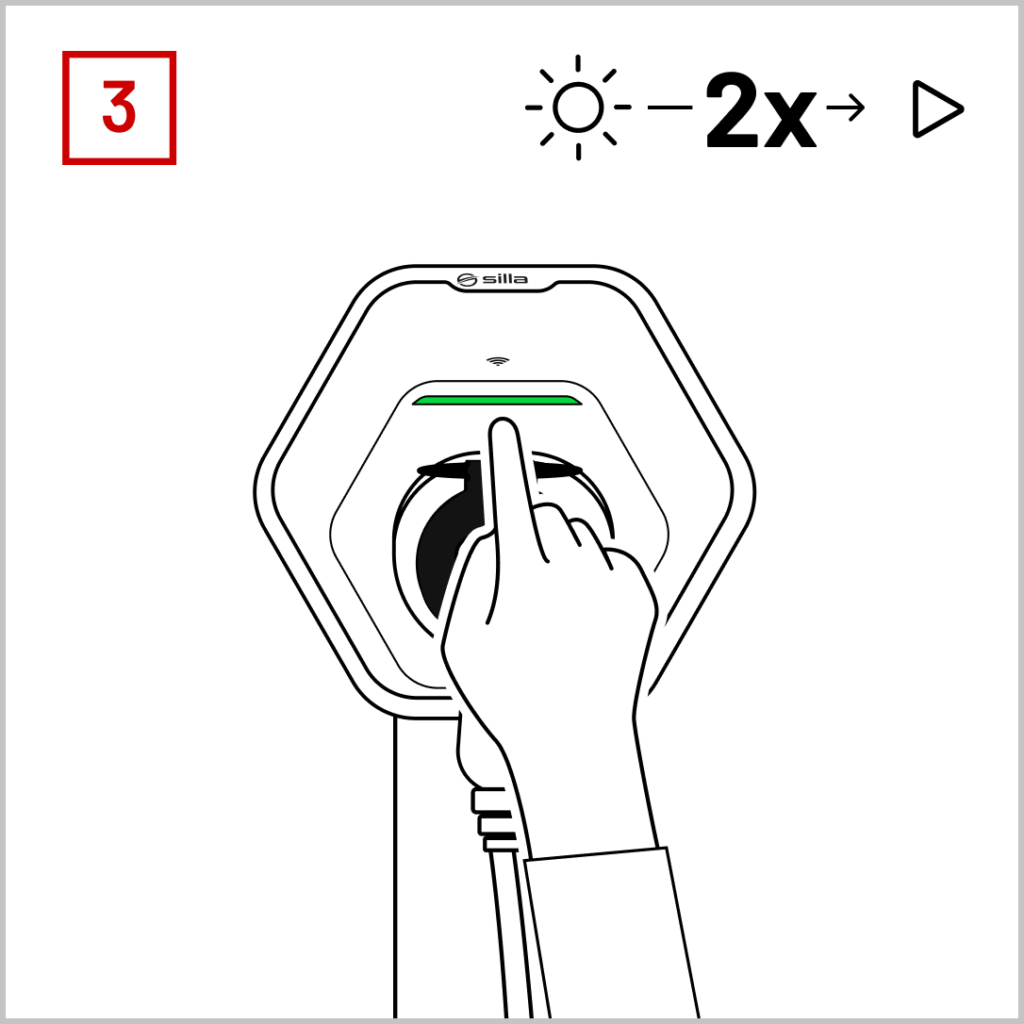

Touch change mode Prism Solar S graphics 3

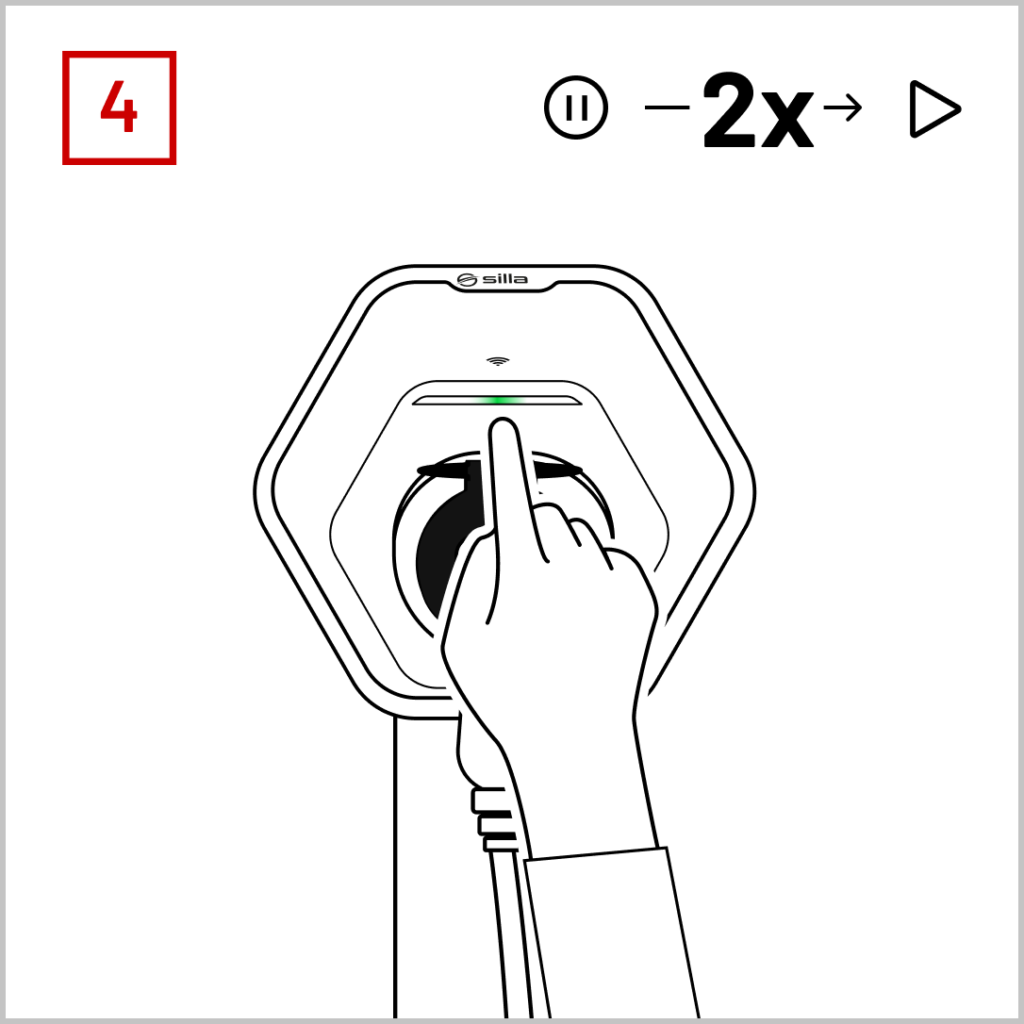

Touch change mode Prism Solar S graphics 4
